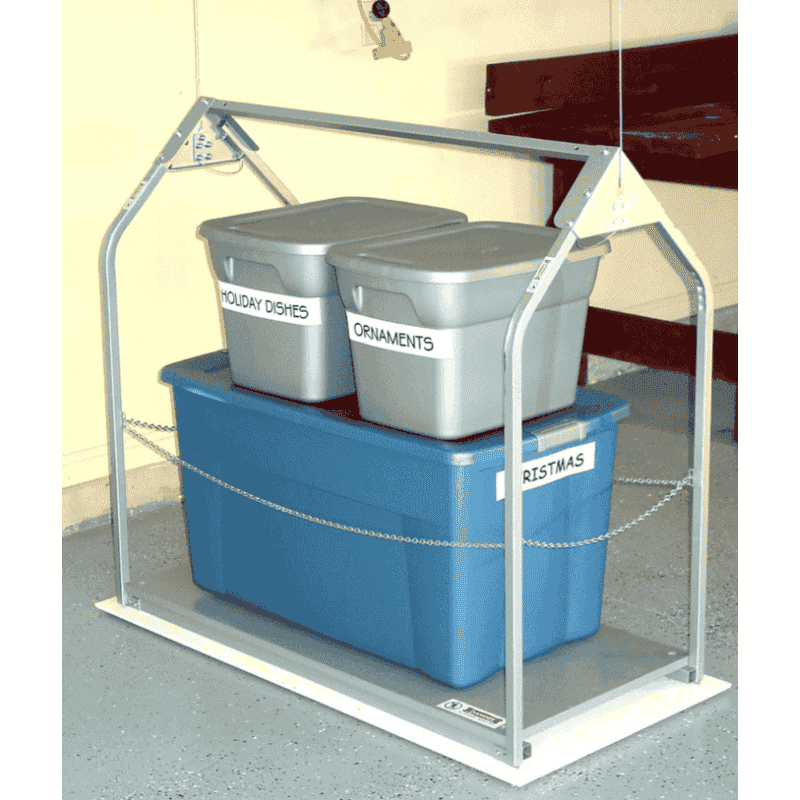

Versa-Lift Model 32 – Motorized Overhead Storage Lift (250 lb Capacity)

Say goodbye to dangerous ladders and back-straining attic trips—especially when you’re moving big, bulky storage totes. The Versa-Lift Model 32 is a fully motorized, ceiling-mounted lift system designed to safely move heavy items between floors at the push of a button. With a 250 lb lifting capacity and a 35 cubic-foot platform, this U.S.-engineered lift helps you maximize attic or garage storage without the hassle of hauling bins by hand.

Built for safety, convenience, and durability, the Model 32 features Auto-Stop, Auto-Close, and Level-Up™ self-leveling technology—making loading, lifting, and unloading simple and secure every time. Whether you’re moving holiday decorations, tools, luggage, or seasonal gear, this lift delivers smooth, reliable performance while reducing the risks that come with ladders and heavy lifting.

Key Features & Benefits

250 lb Capacity
Safely lift heavy, awkward storage items with confidence.

Extra-Large Platform (35 cu. ft.)
Ideal for bulky storage—inside platform size is 28¾" × 56" with up to 35 cubic feet of lift capacity.

Auto-Stop & Auto-Close
The platform stops automatically at the full-up/full-down positions, and the ceiling opening closes automatically when the lift retracts.

Level-Up™ Self-Leveling Platform
The deck stops level with the upper floor for easy loading/unloading, even with varying joist heights.

Multiple Control Options
Choose corded remote (standard), wall-mounted switches (optional), or a wireless remote (optional).

Heavy-Duty Steel Construction + Smooth Lift Speed
Powder-coated steel build with lift speed around 8 inches per second (about 10 ft in ~15 seconds).

Technical Specifications

• Lift Capacity: 250 lb per load

• Platform Volume: 35 cubic feet

• Platform Dimensions (Inside Deck): 28¾" W × 56" L (platform height up to ~52¾" max)

• Required Ceiling Opening: 30½" × 58½"

• Headroom Requirement: ~60" H (with motor extension length ~69")

• Maximum Lift Range: Models available for 8–11 ft, 11–14 ft, 14–17 ft, or 17–20 ft floor-to-floor heights.

• Motor / Power: ~0.6 HP gear motor with automatic brake; standard household power (~115V, ~4.5A)

• Lift Speed: ~8 in/sec

• Construction: Powder-coated steel

• Control Options: Corded remote (keylock & 15' cord), wireless remote, or wall switches

• Joist Height Max: Up to ~20" (including decking & sheetrock)

• Warranty: 3-year warranty

What’s Included

• Versa-Lift Model 32 lift platform and power-head assembly

• Built-in safety features (Auto-Stop, Auto-Close, Level-Up™)

• Your selected controller option (corded standard, wall switch option, or wireless option)

• Installation hardware and manuals/resources

Ideal For

• Homeowners who want safe, ladder-free attic storage access

• Garages/workshops needing an extra-large overhead storage lift

• Moving bulky items like large totes, luggage, bins, coolers, tools, and seasonal storage

Installation

The Versa-Lift Model 32 installs into a framed ceiling opening similar to a pull-down attic ladder. Plan for the larger opening and headroom requirements due to the bigger platform and power-head size.

• Framed Opening Required: 30½" × 58½"

• Headroom Requirement: ~60" H (motor extension area)

• Power Source: Standard household outlet/power

• Height Options: Select based on floor-to-floor measurement (8–11, 11–14, 14–17, 17–20)

For best results, measure attic floor to garage floor (not ceiling height) to choose the correct lift range.

Model 32 Installation Guide

Model 32 Rough In Guide
